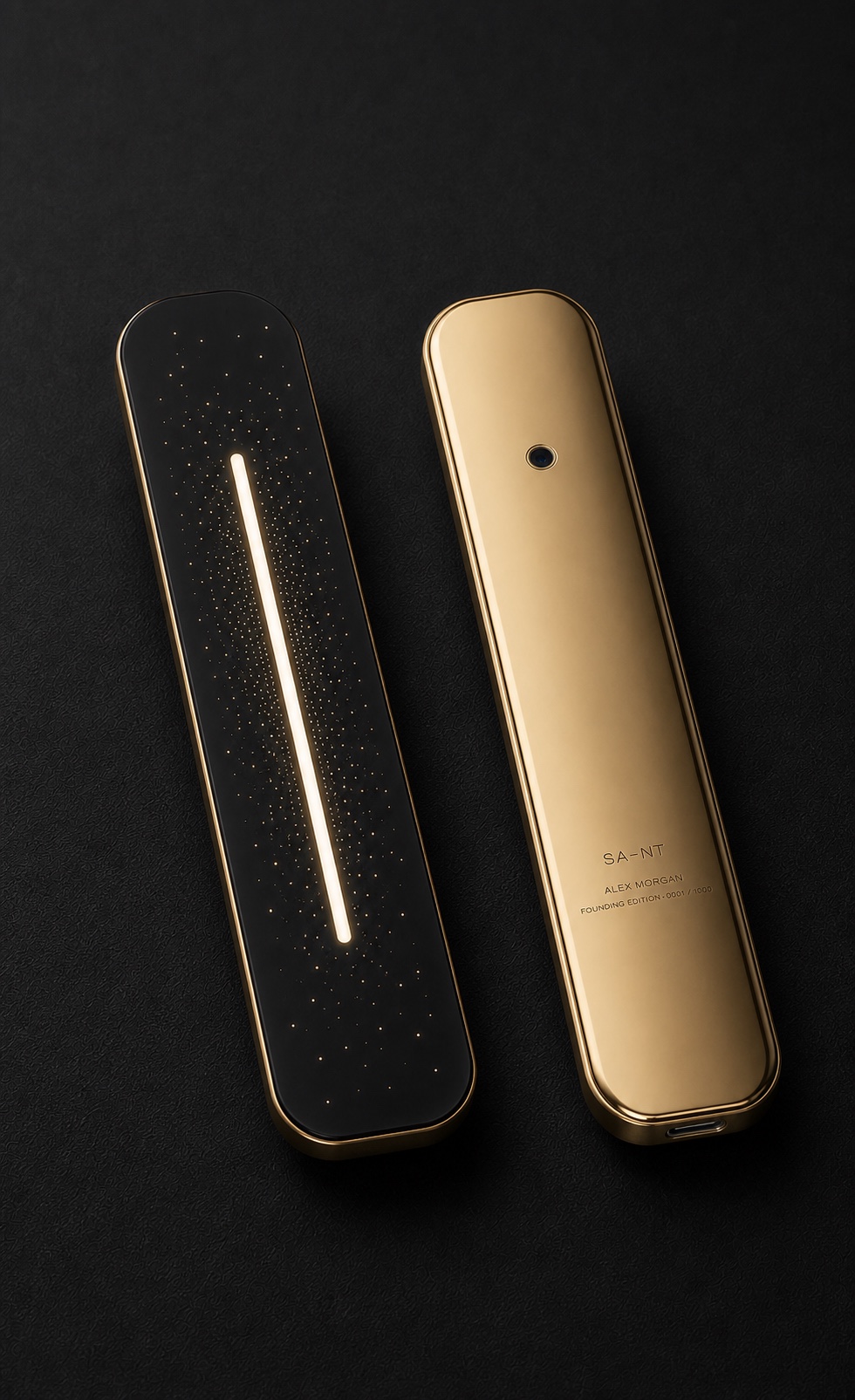

Polished metal
We carry the approved wordmark and camera on the metal rear. We are still qualifying the material and finish process.
438 points. One line that writes.
The face shows listening and done. When it must, the line writes one thing: a name, a time, a code. Then it is a line again. Nothing to scroll and nothing to unlock. Why 438 →
12 millimetres thick. 31.5 wide. 130 long.
A capsule with true semicircular ends, radius 15.75. A flat front 25.5 wide with one R3 roll into the metal. Nothing sharp anywhere you hold it.
One colour, from end to end.
We pair polished metal with a cap in the same colour. The cap remains dielectric. The wordmark and camera stay on the rear; the full black front stays uninterrupted.
One cell. One quiet radio. Three microphones.
A protected pack, a modem, a camera that looks where you point it. Nothing that needs a screen to tend.
Founding Circle →Engineering detailsThe envelope has not moved since V5.0.
We retain the 130 × 31.5 × 12 mm CAD envelope. The shorter silhouettes remain studies. Internal placement and RF qualification remain open.
- Length
- 130 mm
- Width
- 31.5 mmplan radius 15.75 mm, true semicircles
- Thickness
- 12.0 mmat the seam plane
- Front
- 25.5 mm flatone R3 roll through the 1.8 mm cover into the tub wall
- Light reveal
- 57.3 × 3.0 mmflush with the front, centre 18 mm toward the camera end; under it one continuous yellow line that writes, V5.3
- Camera glass
- Ø 6.0 mmin a Ø 6.5 opening on the rear, at the metal end
- Metal
- 88 mmfrom the camera end to the seam at +23
- Cap
- 42 mmdielectric; antenna placement remains unqualified
- Side control
- 8.2 × 2.2 mmon the long wall, under the thumb

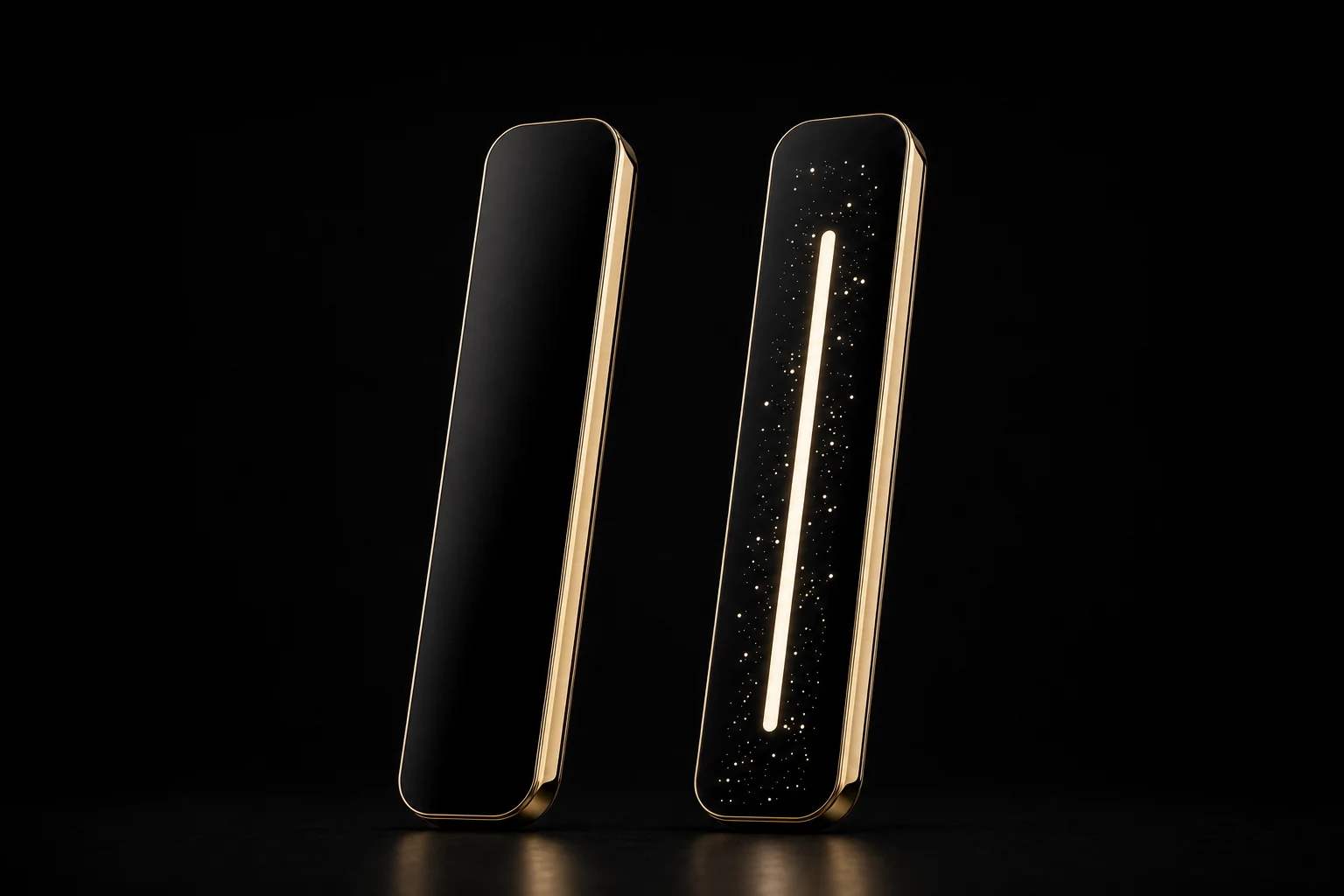

Mostly it just glows.
The face has one light on it. Unbroken means listening, broken means the microphones are off, dark means asleep. That is the whole language most of the day, and you are meant to read it without stopping.
The same line writes one thing.
Saint speaks first. The line writes only what is easier to read than to hear: who is calling when you cannot be spoken to, a gate or a code you must not mishear, the one line above a swipe. Then it is a line again. There is no clock, no count, no menu and nothing to scroll.
Beside the things you carry.
Five parts. Each does one job.
Colour-matched dielectric
We match the cap to the selected rear colour. The cap must remain non-conductive; the coating recipe and antenna performance still need validation.

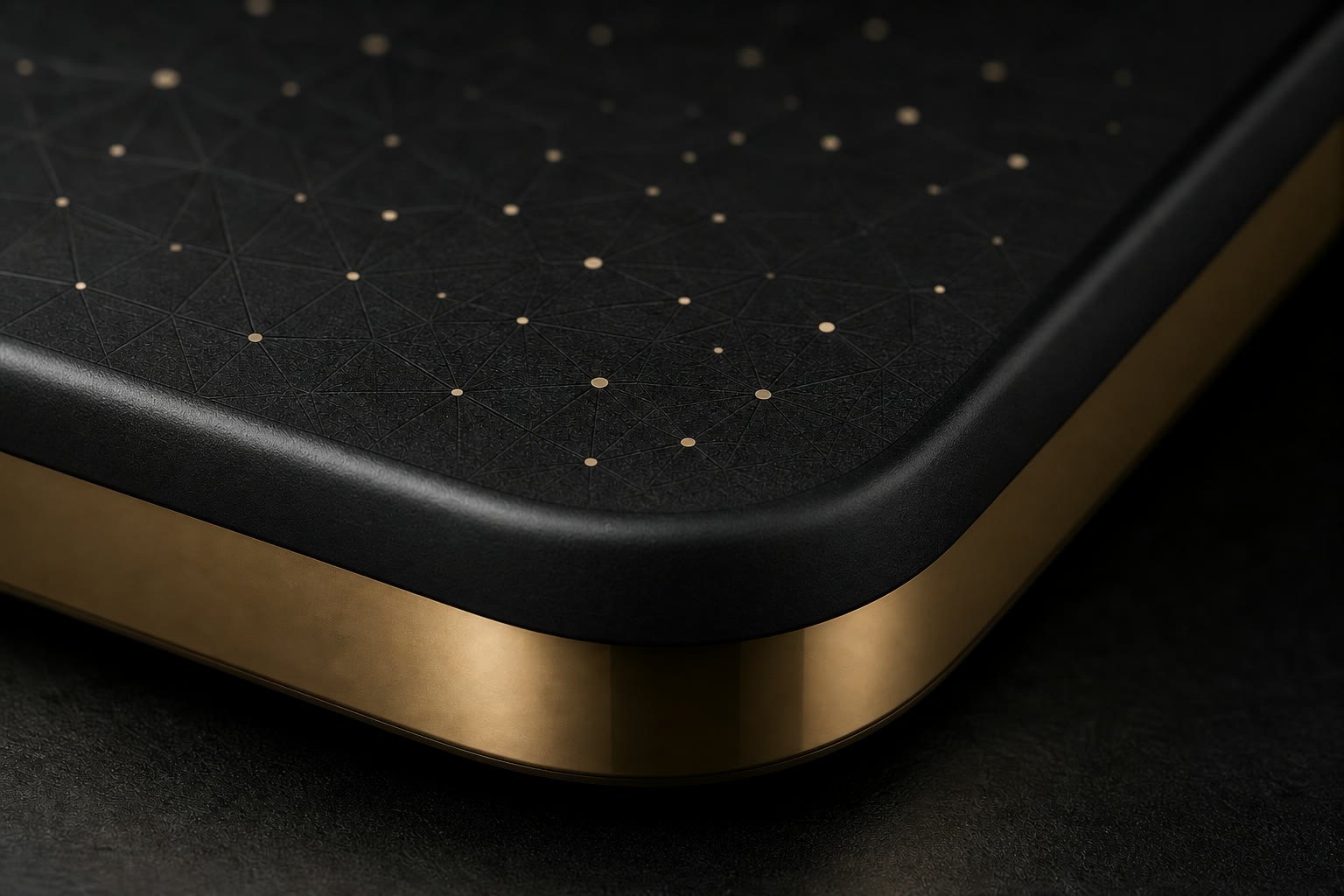

Hard-coated optical polycarbonate
We use a full-length glossy black cover with a flat face and rounded edge. The constellation and single rounded light strip show through it.
Three, with a speaker and a private receiver
We keep three matched microphones, one public speaker and one private receiver you raise to your ear. The chamber work is still on the bench.
Its own cellular connection
We give it an LTE modem and a built-in eSIM, so it is designed to work without your phone. We publish the country list before the first instrument ships.
We design it to listen only in a state you have put it in. A physical control cuts power to the microphones and the camera, and the face shows when it is listening. This is design intent, not tested hardware.
Where this stands
We accepted the gloss and matching-colour direction on 6 September. These views show our appearance target. They do not qualify a finish process or resolve the open antenna placement conflicts.
Nothing on this page is production hardware, a finish standard or a comfort claim. The service does not need the instrument and is live today.

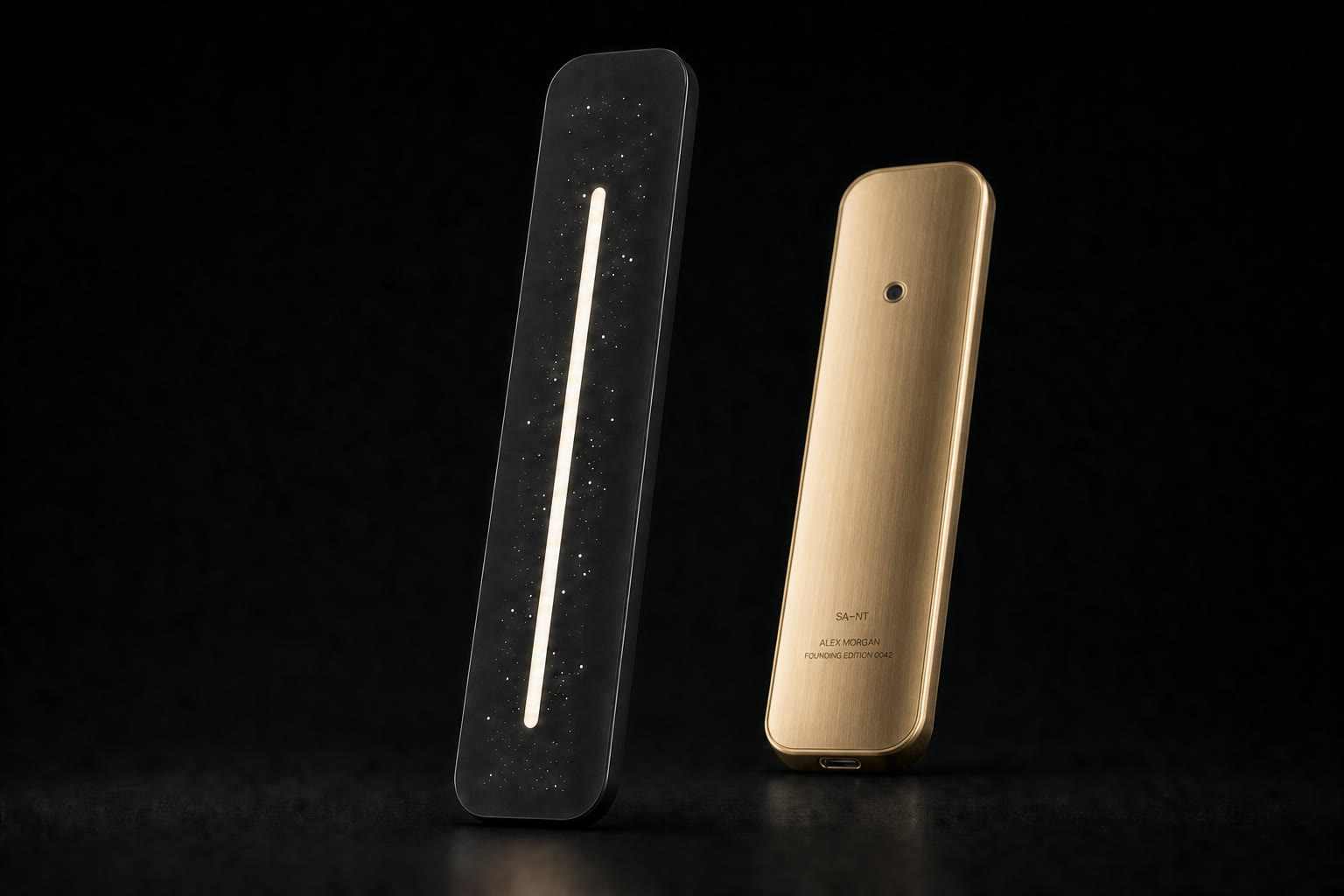

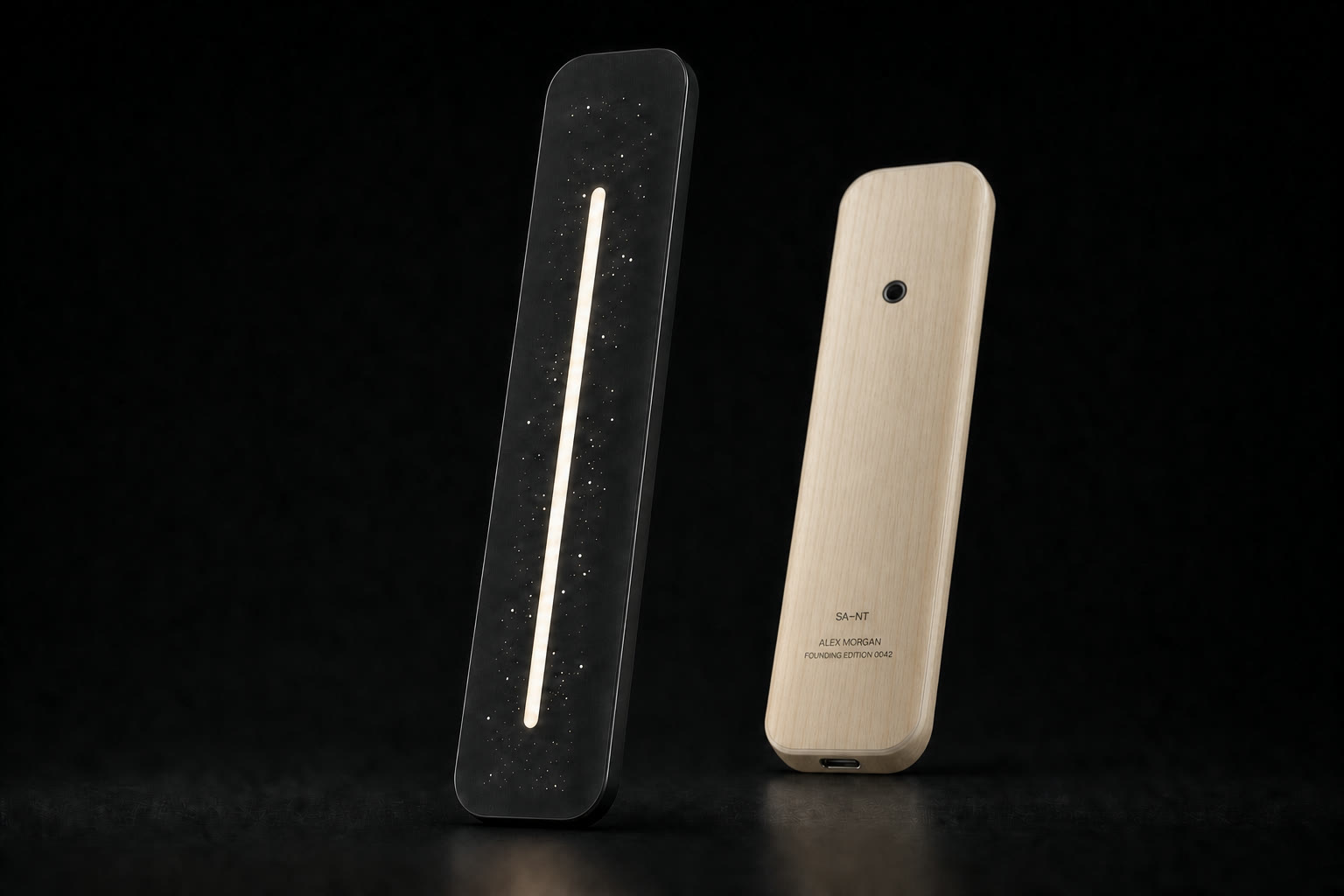

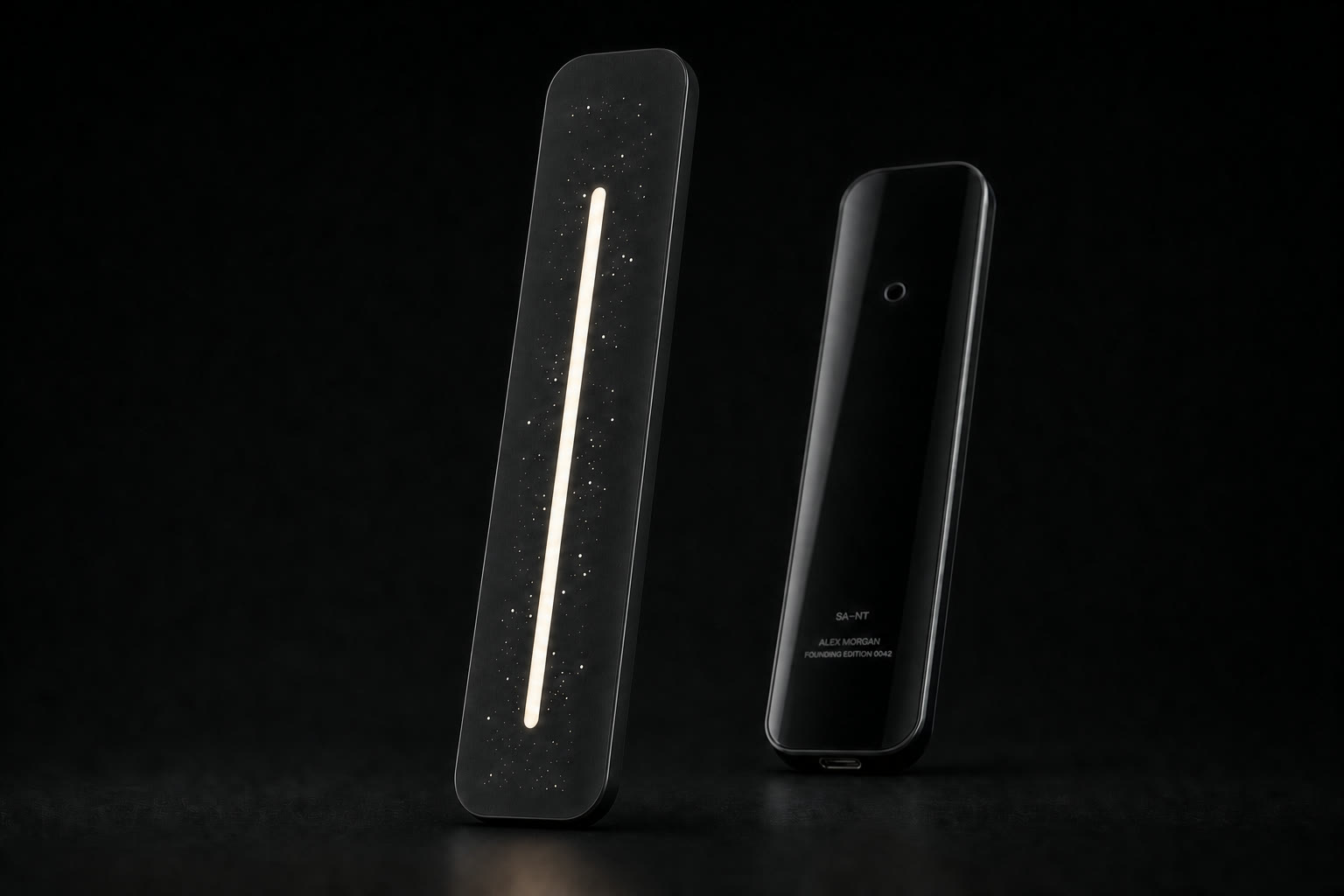

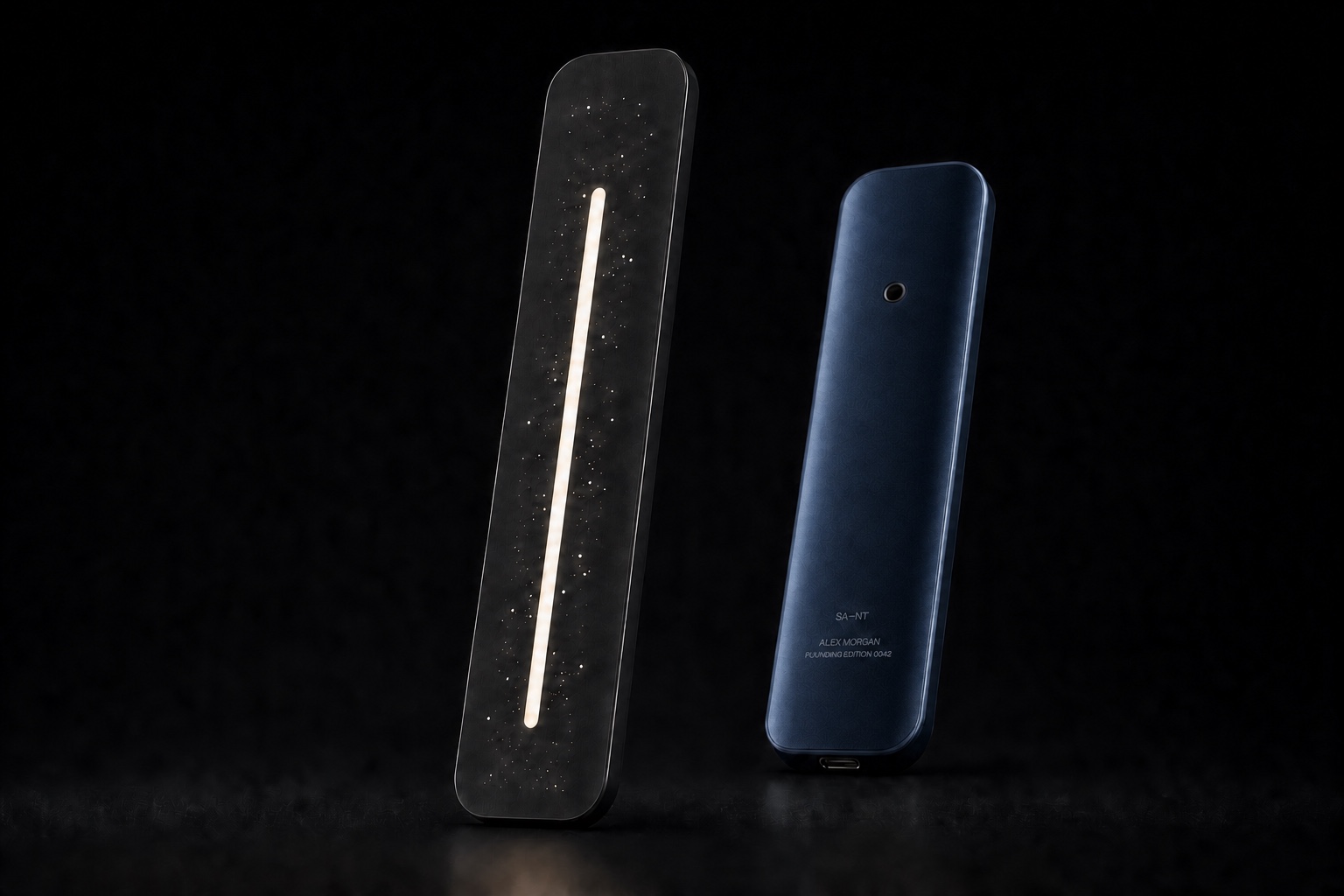

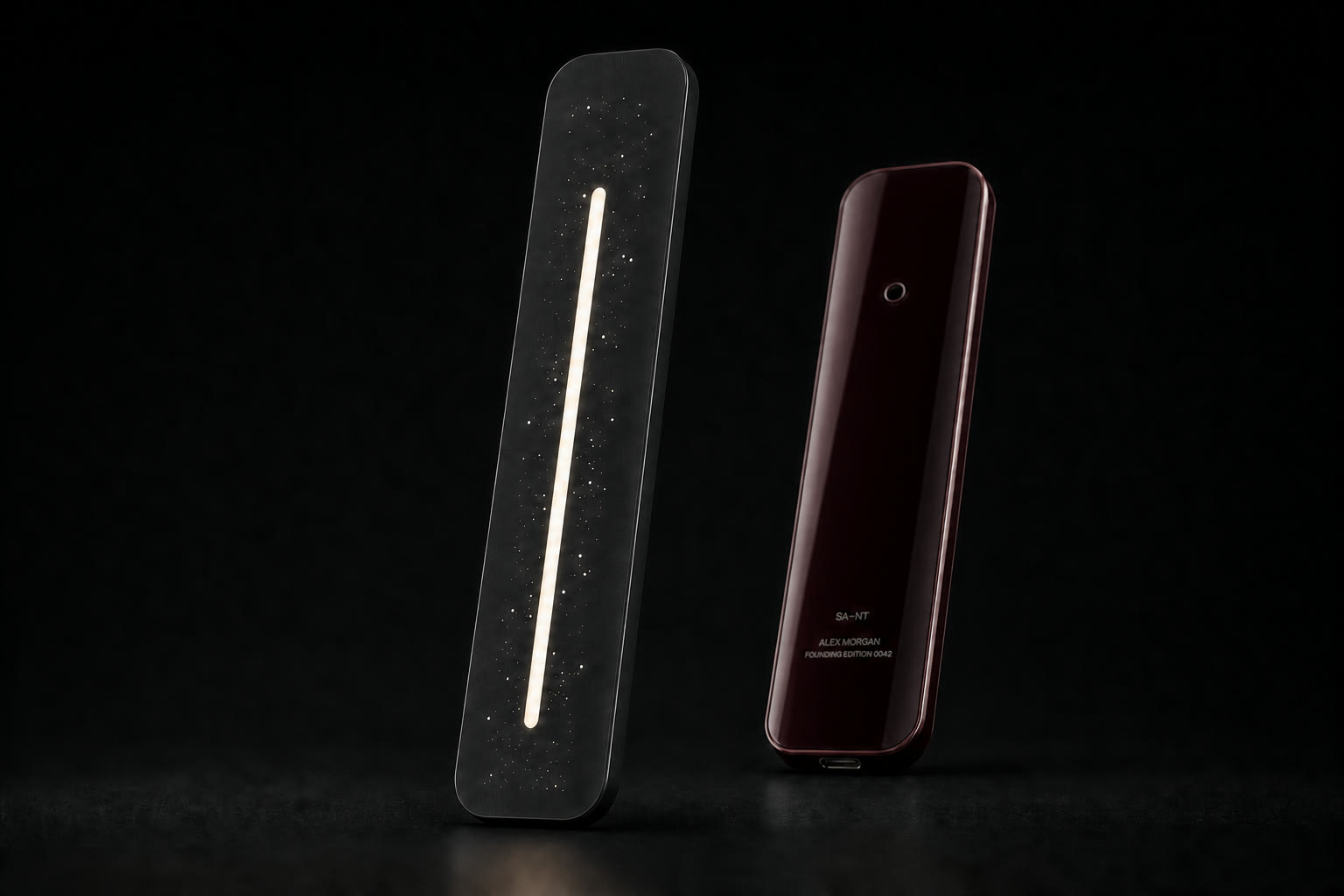

Two faces, one instrument.
We keep the front black across every finish. We match the rear cap to the metal colour. These generated images show the intended appearance; the CAD model below controls the geometry.
Explore the CAD model and four finishes
Live CAD · V5.3
Choose a finish.
Scroll through the model to see its shape and construction.
Appearance studies. Materials and antenna performance remain unqualified.
Loading the instrument
438 points. One line that writes.
The face shows listening and done. When it must, the line writes one thing: a name, a time, a code. Then it is a line again. Nothing to scroll and nothing to unlock. Why 438 →
12 millimetres thick. 31.5 wide. 130 long.
A capsule with true semicircular ends, radius 15.75. A flat front 25.5 wide with one R3 roll into the metal. Nothing sharp anywhere you hold it.
One colour, from end to end.
We pair polished metal with a cap in the same colour. The cap remains dielectric. The wordmark and camera stay on the rear; the full black front stays uninterrupted.
One cell. One quiet radio. Three microphones.
A protected pack, a modem, a camera that looks where you point it. Nothing that needs a screen to tend.
Founding Circle →Engineering detailsScroll
V5.3 appearance study on unchanged CAD. Materials, the display part and antenna placement remain unqualified.
